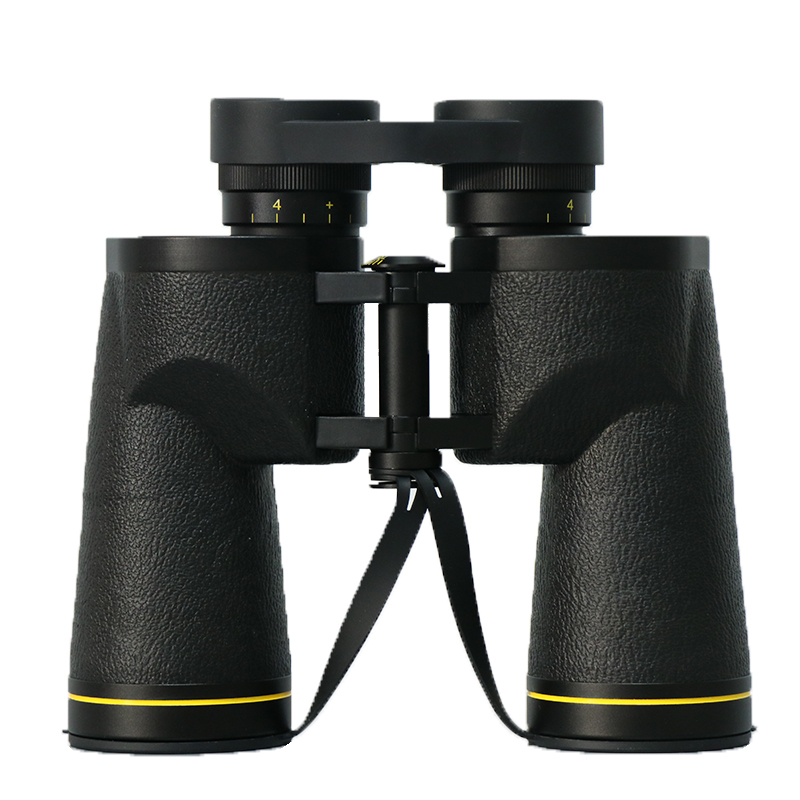

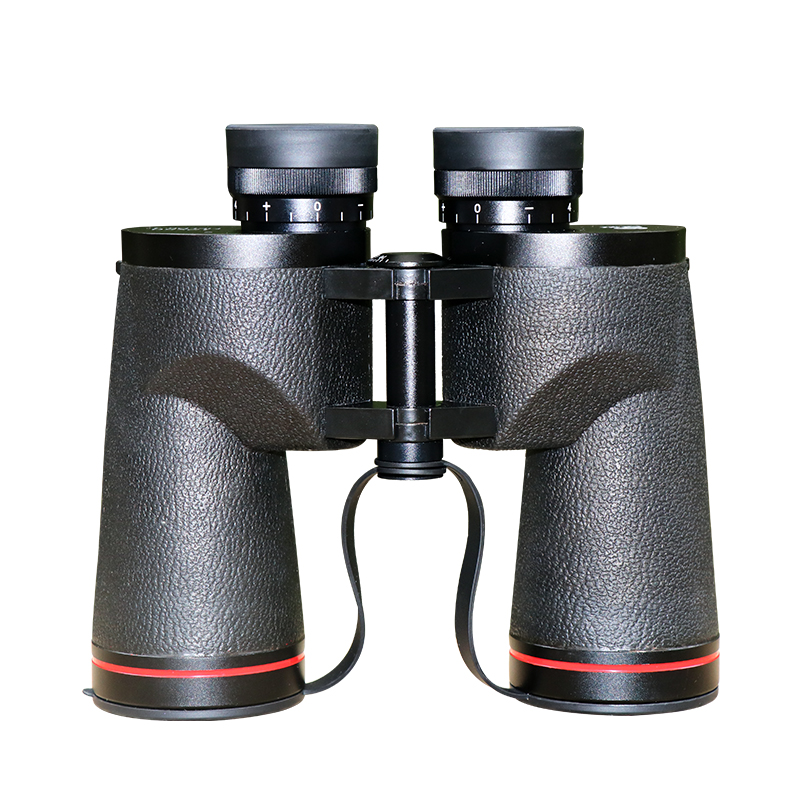

Tianxuan 7X50 10X50 12X50 long range high definition binocular

Tianxuan 7X50 10X50 12X50 long range high definition binocular

产品型号type

7×50

放大magnification

7×

目镜结构(片/组)eyepiece structure

八片五组

物镜口径 diameter

Φ50mm

视场角FOV

7.8°

· 线性视野

Linear field of view

131m/1000m

出瞳直径exit pupil diameter

7.1mm

出瞳距离exit pupil distance

20mm

棱镜系统prism system

保罗porro

棱镜镀膜 prism coating film

超级宽带镀膜 FMC

透镜镀膜lens coating film

超级宽带镀膜 FMC

透镜材料lens

K4

调焦类型focus mode

独立调焦separate focus

防水性能waterproof

 yes

镜身材料materials

镁铝合金magnalium

工作温度adaptive temperature

-43°C  +55°C

镜身颜色color

黑色 black

包皮、外形wrapping

Cadmium sulfide armor

镜身尺寸(长宽高)size

183×1763)mm

镜身净重net weight

1200g

type

10X50

12X50

16X50

倍数 magnification

10X

12X

16X

口径(mmdiameter

50mm

50mm

50mm

视场度数

7°

6.4°

5.5°

视场FOV

119m/1000m

112m/1000m

96m

镜片组数 lens structure

57

57

57

出瞳直径 exit pupil diameter

5mm

4.2mm

3.2mm

出瞳距离exit pupil distance

18mm

20mm

16mm

瞳孔距离Pupil Distance

56-72mm

56-72mm

56-72mm

最近调焦距离

Nearest focusing distance

5m

5m

7m

分辨率resolution

≤4”

≤4”

6

防水 waterproof

1m水深30min

1m水深30min



1m水深30min



分划板测距 calibrated dial

yes

yes

yes

氮气充存nitrogen charge

yes

yes

yes

重量 net weight

1140g

1100g

1100g

尺寸(mm) size

192x64x185

192x64x185

192x64x185



Tianxuan telescope is our company referring to the characteristics of the world's advanced national telescope, according to the use requirements of the whole day developed successfully high sealing, high performance telescope, can be used in a variety of harsh environmental conditions, and has the characteristics of high clarity, so it is widely used in military, public security, transportation, ocean, forestry, aviation, power, gamping, hunting and other fields

1, comprehensive coating, imaging sharp, the telescope in the observation of brightness, image quality and the authenticity of the image color is significantly better than similar telescopes at home and abroad.

2. Excellent performance of wide vision, large diameter of exit pupil and long distance of exit pupil. The telescope can also observe objects clearly and comfortably in low-light environments such as dusk and dawn, and under the condition of wearing a gas mask (or glasses).

3, nitrogen-filled waterproof, high sealing performance, the telescope can well meet the needs of all-weather combat.

4, the operating temperature range of -40℃~+70℃, the telescope can well meet the needs of different geographical locationss of war zones.

5, the telescope adopts all-metal structure, strong and durable; Cadmium sulfide armor, shock absorption, anti-slip design, has a strong ability to withstand turbulence and vibration, can withstand more than 20 gravitational acceleration impact, fully adapt to the field environment.

6, the telescope mirror with a division, can roughly measure the distance and azimuth of the target.

7, the telescope fully meet the requirements of the National military standard (GJB), can be used all weather 8, the use of component-based design, with good general maintenance performance.

8. The mirror body is made of magnesium alloy, which is lighter and more comfortable for both hands.

9. Newly designed optical system, flat field design, provides sharp images. All air surfaces are multi-layer coating design, using the latest coating technology, true restoration of things color.

10, adjustable structure, the mirror body waterproof better than the medium mode, can adapt to a variety of harsh environment; .
